EGB / EVI Technology Heat Pumps
Greenbro EGB Range
EVI (Enhanced Vapor Injection) Technology
Heat Pumps
Greenbro introduces the EGB range, designed with advanced EVI (Enhanced Vapor Injection) compressor technology to deliver superior heating performance, increased efficiency, and optimal energy savings. Engineered to perform even in extreme cold conditions, this cutting-edge system ensures reliability and cost-effectiveness for residential, commercial, and industrial heating applications.
What is a EVI (Enhanced Vapor Injection) Compressor?
An EVI (Enhanced Vapor Injection) compressor is a type of compressor used in heat pump systems to improve efficiency, especially in low-temperature conditions. It utilizes an intermediate cooling and vapor injection process that enhances performance compared to standard compressors.
1.
It uses a special economizer or sub cooling circuit to inject additional refrigerant vapor into the compressor at an intermediate pressure.
2.
This process reduces the discharge temperature, increases cooling/heating capacity, and improves efficiency.
Versatile opions to suite your needs
The Greenbro EGB Range is not only powerful but also versatile in design. Choose from three different outer casings to best match your aesthetic and environmental requirements:
Standard Casing: A robust and economical choice for everyday applications.
Stainless Steel 304: Offers enhanced durability and resistance to corrosion, ideal for more demanding environments.
Stainless Steel 316: The premium choice, providing superior corrosion resistance and longevity, perfect for coastal or industrial areas.
Introducing the Future of Hot Water Technology
Greenbro’s EGB range of EVI heat pumps is built for high performance and energy efficiency. Featuring advanced Enhanced Vapor Injection (EVI) technology, these units deliver reliable heating even in low ambient temperatures and can achieve water temperatures of up to 65°C. Ideal for both residential and commercial applications, EVI heat pumps offer superior comfort, reduced energy consumption, and long-lasting durability.
Key feaures of the Greenbro EGB / EVI Technology Heat Pumps
Superior Cold-Climate Performance: Traditional heat pumps struggle in very low temperatures, while EVI heat pumps operate efficiently in low ambient conditions. This makes them ideal for regions with harsh winters.
Higher Output Temperatures: EVI heat pumps can produce hot water up to 65°C, compared to 55-60°C for standard models. This makes them suitable for applications requiring higher water temperatures.
Enhanced Efficiency (COP): The EVI cycle injects additional vapor into the compression process, resulting in a higher Coefficient of Performance (COP). That means more heating output per unit of energy consumed, translating to lower running costs.
Expanded Operating Range: With EVI technology, these units can maintain performance across a broader range of outdoor temperatures, ensuring stable hot water delivery.
Reduced Compressor Stress: By lowering discharge temperatures and improving oil return, EVI compressors run smoother, resulting in less mechanical wear and longer system lifespan compared to traditional compressors.
Eco-Friendly Refrigerant Options: Many EVI heat pumps use low-GWP refrigerants like R407C, offering a more environmentally responsible solution with reduced carbon footprint.
Ideal for Demanding Applications: Due to their high efficiency and heating capacity, EVI heat pumps are well-suited for large residential developments, commercial buildings, hotels, and hospitals, where consistent high-temperature heating is required.
Our Greenbro EGB / EVI Technology heat pumps are ideal for various applications, including:
Residential Heating: Ideal for homes in cold climates, EVI heat pumps ensure consistent heating and supply of hot water, even during winter months.
Commercial Buildings: Office buildings, Hotels and resorts, Retail stores and shopping centers, Restaurants and cafes, Schools and universities, Hospitals and healthcare facilities.
Industrial Processes: Manufacturing plants, Chemical processing facilities, Food and beverage processing, Textile production, Pharmaceutical production.
Hospitals & Healthcare Facilities: Supports sanitation and comfort needs, with high-temperature hot water and steady heating critical for patient care and facility hygiene.
Schools & Universities: Provides efficient and eco-friendly heating and hot water for large facilities with varying occupancy loads throughout the year.
Renewable Energy Integration: Often integrated into energy-efficient buildings or green-certified developments for sustainable heating solutions.
Specialized Applications: District heating networks, Industrial drying processes.
Retrofit Projects: Upgrading existing heating systems to improve energy efficiency, Replacing old boilers with modern, efficient heat pumps.
New Construction: Integration into new residential and commercial developments, Custom-designed heating solutions for specific building requirements.
Multi-Unit Residential Developments: A centralized solution for hot water and space heating in blocks of flats, townhouse complexes, or gated estates.

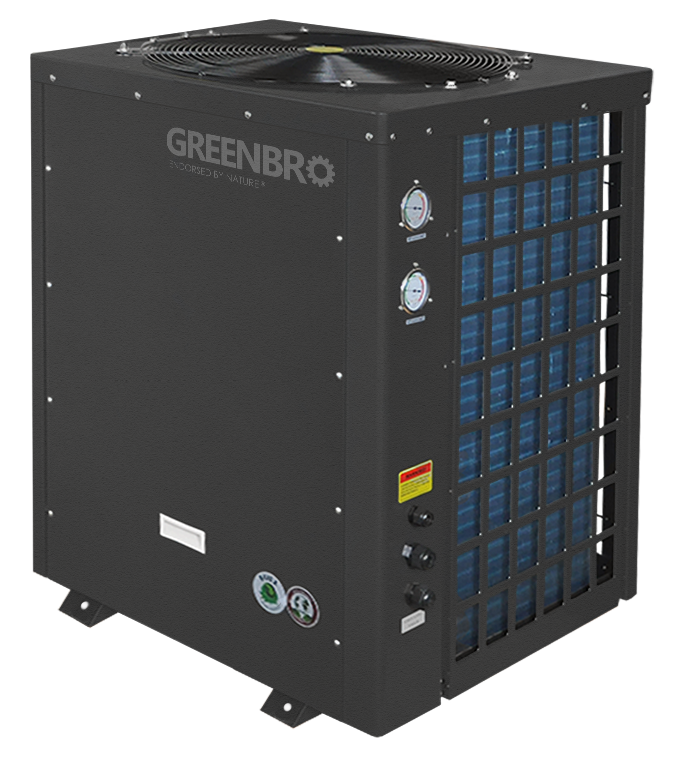

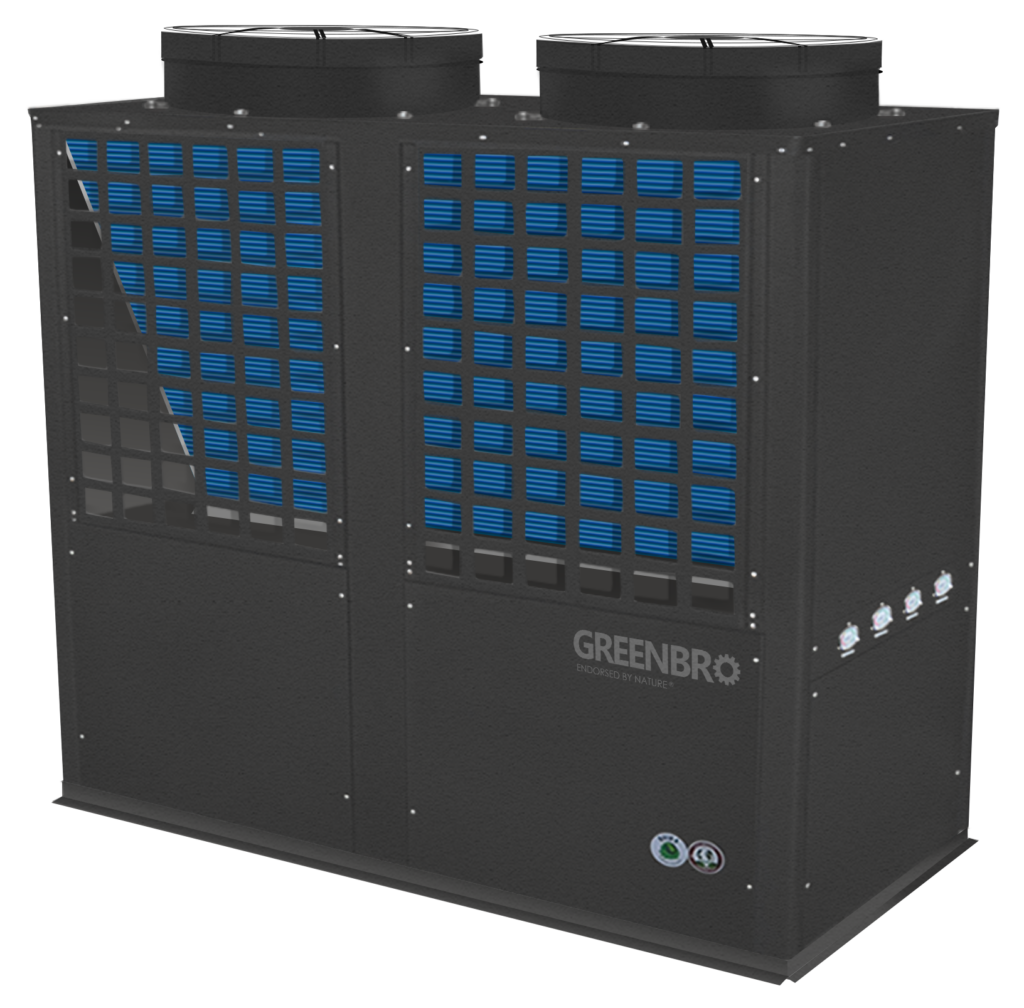

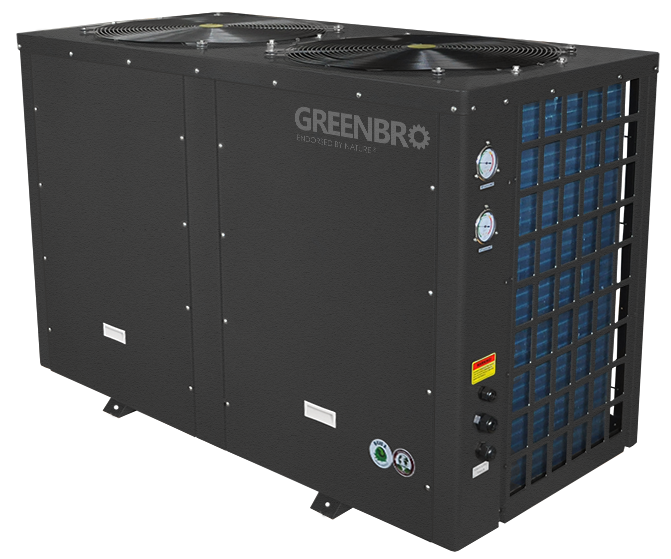

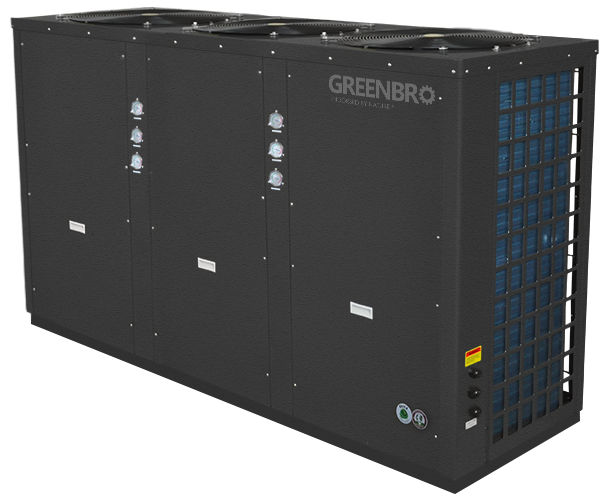

| Model | EGB-022-S | EGB-030-S | EGB-044-S | EGB-065-S | EGB-088-V | ||
| Power Supply | Ph-V-Hz | 380V/3PH/50HZ | 380V/3PH/50HZ | 380V/3PH/50HZ | 380V/3PH/50HZ | 380V/3PH/50HZ | |
| Working Temp | ℃ | -17°C~43°C | -17°C~43°C | -17°C~43°C | -17°C~43°C | -17°C~43°C | |
| Max. Water Temp Setpoint. | ℃ | 60℃ | 60℃ | 60℃ | 60℃ | 60℃ | |
| Max. Outlet Water Temp. | ℃ | 65℃ | 65℃ | 65℃ | 65℃ | 65℃ | |
| Water Heating (A20/W55) | Capacity | KW | 22 | 30 | 44 | 65 | 88 |
| Hot Water Yield | L/h | 473 | 645 | 946 | 1397 | 1892 | |
| Input | KW | 4,98 | 6,83 | 9,97 | 14,7 | 19,9 | |
| COP | W/W | 4,42 | 4,39 | 4,41 | 4,42 | 4,42 | |
| Rated Current | A | 8,84 | 11,28 | 16,46 | 24,7 | 38 | |
| Max. Input Consumption | KW | 6,97 | 10,05 | 13,958 | 25 | 27,86 | |
| Max. Input Current | A | 13,97 | 18 | 29 | 44 | 49,00 | |
| Start Current | A | 60 | 70 | 60 | 70 | 121 | |
| Compressor | Model | YW135T1-V100 | YW205T1-V100 | YW135T1-V100 | YW135T1-V100 | YW285T1-V100 | |
| Type / Brand | Scroll / INVOTECH | Scroll / INVOTECH | Scroll / INVOTECH | Scroll / INVOTECH | Scroll / INVOTECH | ||
| NO. of Compressor | PCS | 1 | 1 | 2 | 3 | 2 | |
| Rated Current | A | 9,2 | 13,5 | 9,2 | 9,2 | 17,2 | |
| Locked Rotor Amp | A | 60 | 117 | 60 | 60 | 121 | |
| Capacitor | μF | / | / | / | / | / | |
| Refrigerant Oil Type | POE | POE | POE | POE | POE | ||
| Displacement | 14,5 | 21,4 | 14,5 | 14,5 | 29,1 | ||
| Discharge Tube Connection | 1/2″ | 7/8″ | 1/2″ | 1/2″ | 7/8″ | ||
| Suction Tube Connection | 7/8″ | 1 1/8″ | 7/8″ | 7/8″ | 1 1/8″ | ||
| Fan Motor | Model | YDK-160G-6 | YDK-160G-6 | YDK-160G-6 | YDK-160G-6 | YWF.A6T-630S-5F1IIIS01 | |
| Input | W | 320 | 320 | 320 | 320 | 500/350 | |
| Capacitor | μF | 10 | 10 | 10 | 10 | / | |
| Speed | r/min | 800/500 | 800/500 | 800/500 | 800/500 | 900/750 | |
| Diameter of Fan | mm | 556 | 556 | 556 | 556 | 630 | |
| Air Flow | m³/h | 7000 | 7000 | 7000 | 7000 | 10200/8500 | |
| Static Pressure | Pa | 30 | 30 | 30 | 30 | / | |
| Qty | 1 | 2 | 2 | 3 | 2 | ||
| Heat Exchanger | Type | copper tube in shell | copper tube in shell | copper tube in shell | copper tube in shell | copper tube in shell | |
| Qty | 1 | 1 | 2 | 3 | 2 | ||
| Evaporator | Number of Rows | 1 | 2 | 2 | 2 | 2 | |
| Tube Pitch(a)x Row Pitch(b) | mm | 25×22 | 25×22 | 25×22 | 25×22 | ||
| Fin Spacing | mm | 1,8 | 1,8 | 1,8 | 1,8 | 2 | |
| Fin Type | Hydrophilic aluminium | Hydrophilic aluminium | Hydrophilic aluminium | Hydrophilic aluminium | Hydrophilic aluminium | ||
| Tube Outer Dia. & Type | mm | φ9.52 Innergroove Tube | φ9.52 Innergroove Tube | φ9.52 Innergroove Tube | φ9.52 Innergroove Tube | φ9.52 Innergroove Tube | |
| Four-Way Valve | Model | STF-0408G | STF-0408G | STF-0408G | STF-0408G | STF-0712G | |
| Brand | Saginomiya | Saginomiya | Saginomiya | Saginomiya | Saginomiya | ||
| AC Contactor | Model | 3TF3300-0X/AC220V | 3TF3300-0X/AC220V | 3TF3300-0X/AC220V | 3TF3300-0X/AC220V | LF12WL05 | |
| Brand | Siemens | Siemens | Siemens | Siemens | HONGYUAN | ||
| Expansion Device | Type | Thermal Expansion Valve | Thermal Expansion Valve | Thermal Expansion Valve | Thermal Expansion Valve | thermostatic expansion valve | |
| Model | BAE6ZW195 | BAE4.5ZW195 | BAE6ZW195 | BAE6ZW195 | TGEZ10（067N4157） | ||
| Brand | Emerson | Emerson | Emerson | Emerson | Danfoss | ||
| Wired Controller | Type | Smart Touch Screen | Smart Touch Screen | Smart Touch Screen | Smart Touch Screen | Smart Touch Screen | |
| The Length of Wires | m | 12 | 12 | 12 | 12 | 12 | |
| Set Temp. | ℃ | 25~60 | 25~60 | 25~60 | 25~60 | 25~60 | |
| Water System | Materials of Water Pipe | copper | copper | copper | copper | copper | |
| Water Flow | m3/h | 4,2 | 7,0 | 9,1 | 14,0 | 17 | |
| Water Different Pressure | Kpa | 50 | 55 | 55 | 55 | 60 | |
| Diameter,Water Inlet Pipe | mm | DN25 (Female) | DN40 (Female) | DN40 (Female) | DN50 (Female) | DN50 | |
| Diameter, Water Outlet Pipe | mm | DN25 (Female) | DN40 (Female) | DN40 (Female) | DN50 (Female) | DN50 | |
| Refrigerant HP & LP Safety Cut-Out Pressure | Mpa | 4.2/0.02 | 4.2/0.02 | 4.2/0.02 | 4.2/0.02 | 4.2/0.02 | |
| Refrigerant | Gas Type | 3000 | 5500 | 3000*2 | 3300*3 | 6500*2 | |
| Gas Weight | g | 57 | 58 | 60 | 63 | 70 | |
| Sound Pressure Level | dB(A) | 57 | 58 | 60 | 63 | 70 | |
| Outdoor Unit | Dimension(L*W*H) | mm | 752*690*965 | 1450*702*950 | 1450*702*1060 | 2150*765*1290 | 2000*900*1880 |
| Packing(L*W*H) | mm | 840*750*1100 | 1525*805*1110 | 1525*805*1220 | 2250*865*1450 | 2090*985*2020 | |
| NG/WG | kg | 119/137 | 210/240 | 249/294 | 398/460 | 530/620 | |
